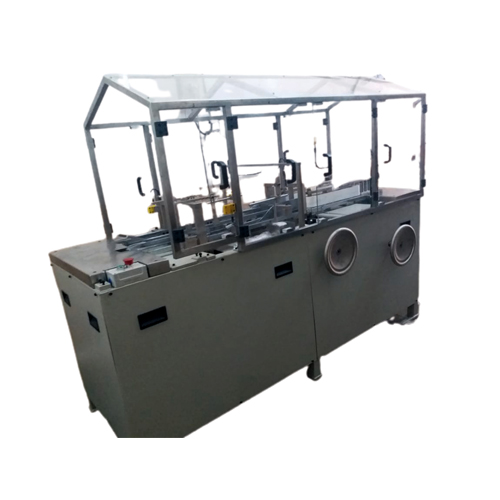

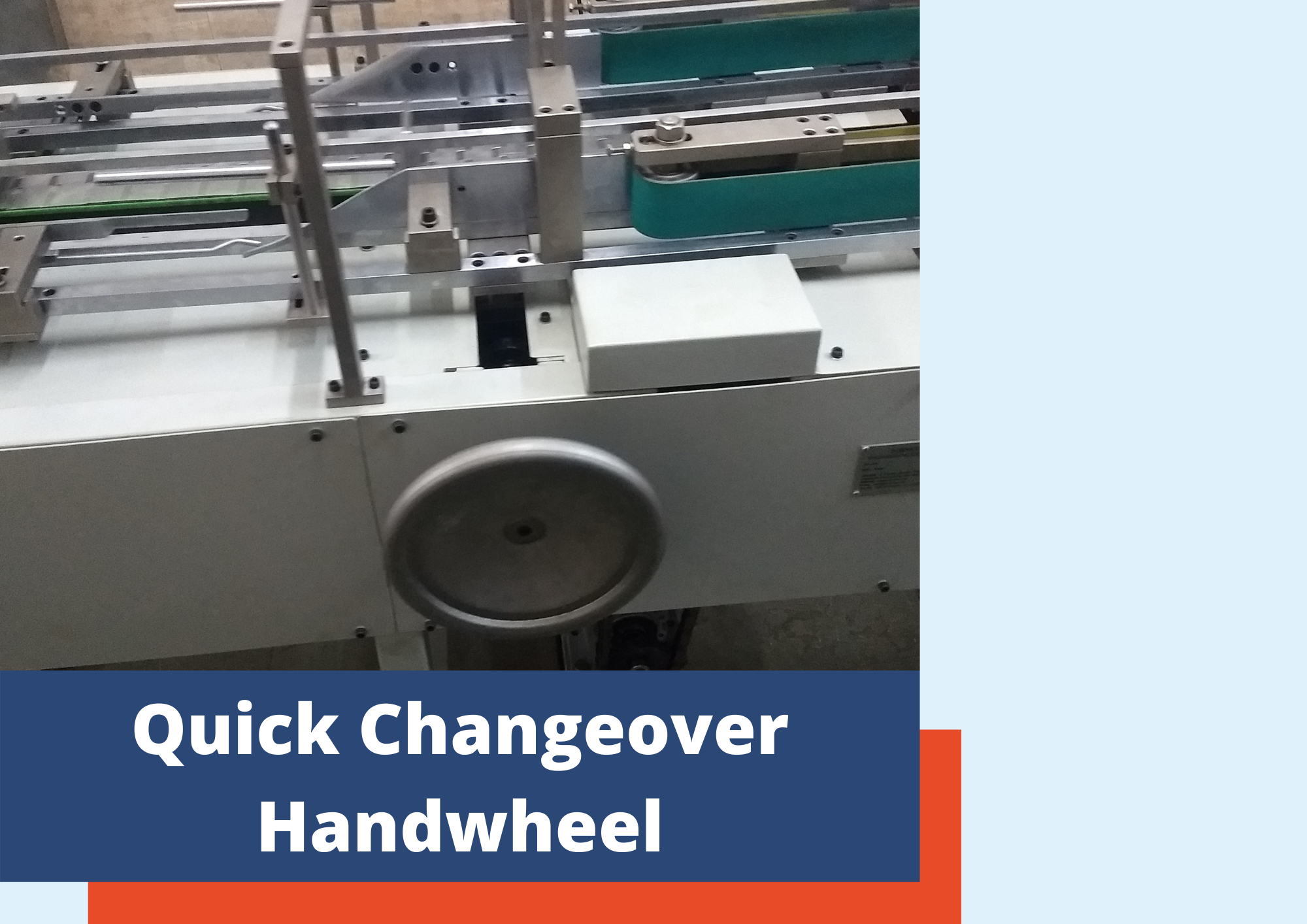

Carton Gluing Machine is a cost-efficient solution for packing of variety of products. This semi-automatic machine is robust, compact, reliable combined with application flexibility and high end product quality. This machine has very quick changeover and is suitable for very small batch size.
| Model | NCG 30/ NCG-J |
|---|---|
| Speed* | 25-30 cartons/min |
| Carton Size (L x W x H): NCG 30 |
80 x 50 x 20 mm (min.) 280 x 300 x 100 mm (max.) |
| Carton Size (L x W x H): NCG-J |
80 x 50 x 70 mm (min.) 280 x 300 x 200 mm (max.) |

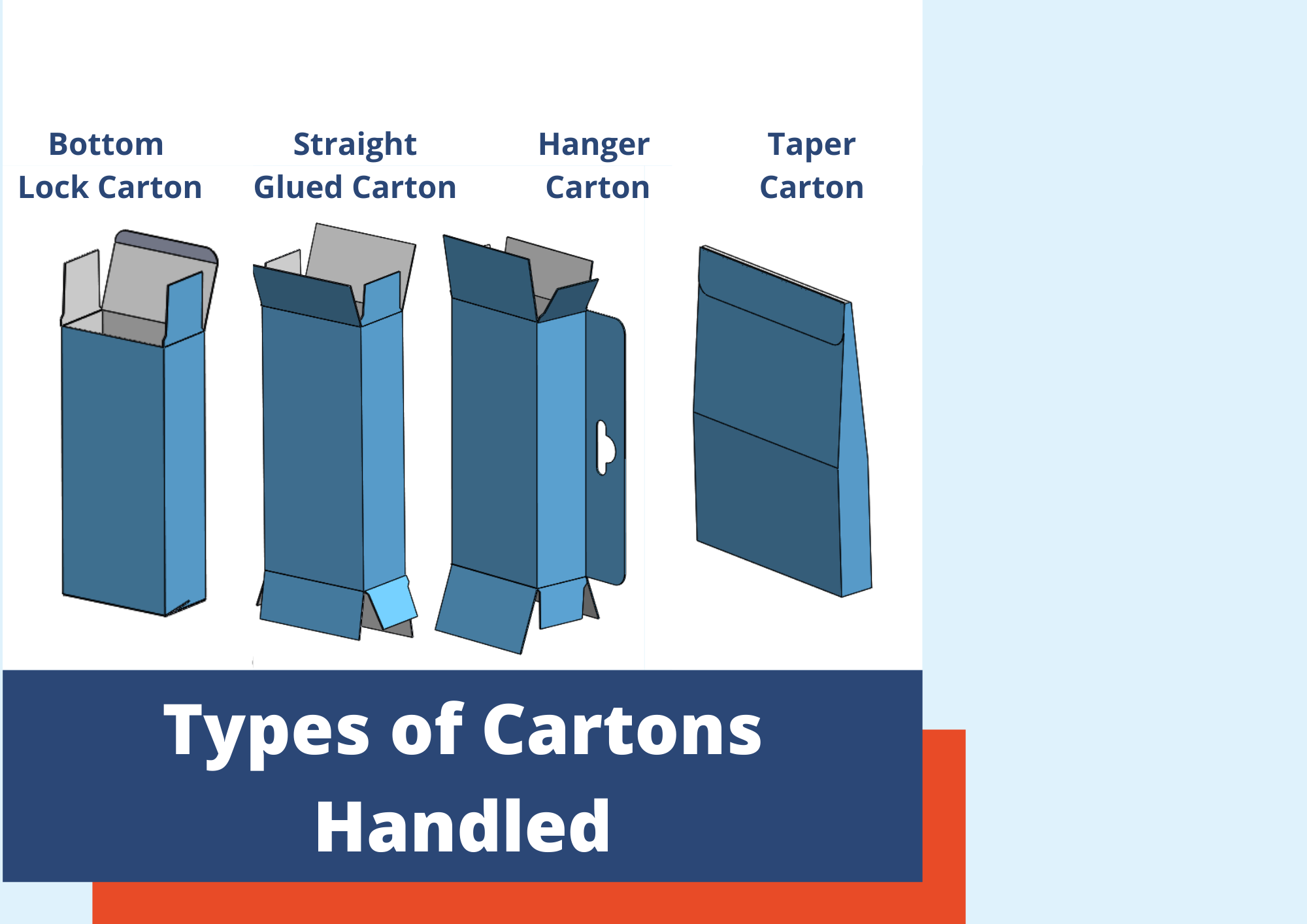

| Carton Type | Glued Carton |
| Power Consumption | 4 kw |
| Machine Dimensions** | 2100 x 1150 x 1200 mm (NCG 30) 3400 x 1200 x 1600 mm (NCG-J) |
| *Depends on cartoning material, volume and carton size. | |
| **Machine dimensions may vary depending on the product size | |
