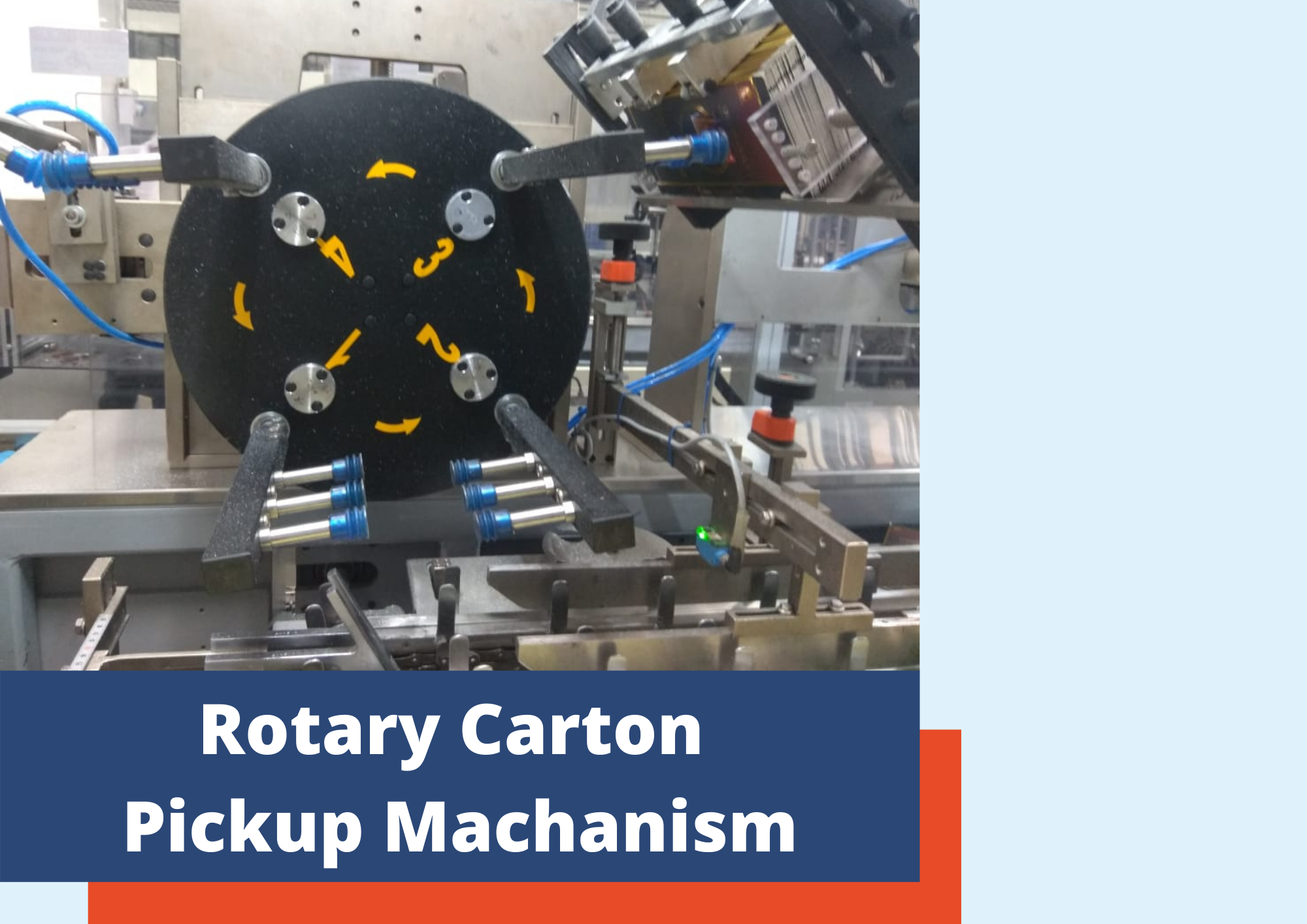

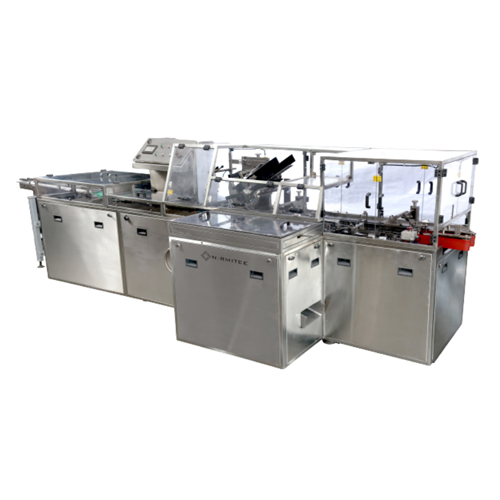

Horizontal Continuous Cartoning Machine are high speed machines, with entirely automated functions. Multiple arm vacuum pickup ensures continuous & smooth operation with minimal human interaction. This machine has adaptability to upstream machine synchronization or even manual product feeding.
| Model | NCC 80/ NCC 120/ NCC 200 |
|---|---|
| Speed* | 80/120/200 cartons/min |
| Carton Size (L x W x H) | 110 x 30 x 12 mm (min) 280 x 80 x 60 mm (max.) |
| Carton Type | Glued Carton/ Tuck in Carton |
| Power Consumption | 5 kW |
| Machine Dimensions** | 4000 x 1400 x 1600 mm (NCC 80/ NCC 120) 4300 x 2200 x 2000 mm (NCC 200) |
| *Depends on cartoning material, volume and carton size. | |
| **Machine dimensions may vary depending on the product size | |
