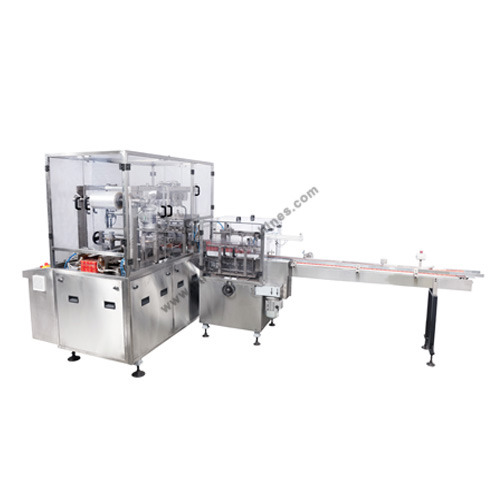

Carton Collating &
Overwrapping Machine

Carton Collating & Overwrapping machine can efficiently bundle/ collate the cartons in required matrix and overwrap the matrixed cartons. Operational ease is achieved by servo & PLC controlled functions. Smooth wrinkle free packing is assured. Most suitable for collating & overwrapping cartons for agarbatti, pencils, tubes, soaps, bottle, pouches, etc.


 NCCO 15


 15 packs/min

Matrix Formations

2 x 3, 3 x 4,
2 x 6, 4 x 3

Carton Size
(L x W x H)

25 x 25 x 65 mm (min)
75 x 75 x 300 mm (max.)

Power Consumption

 2.5 kW

Machine Dimensions**

 3500 x 1800 x 1800 mm

*Depends on cartoning material, volume and carton size.
** Machine dimensions may vary depending on the product size

  • Synchronized drive to link up cartoning machine

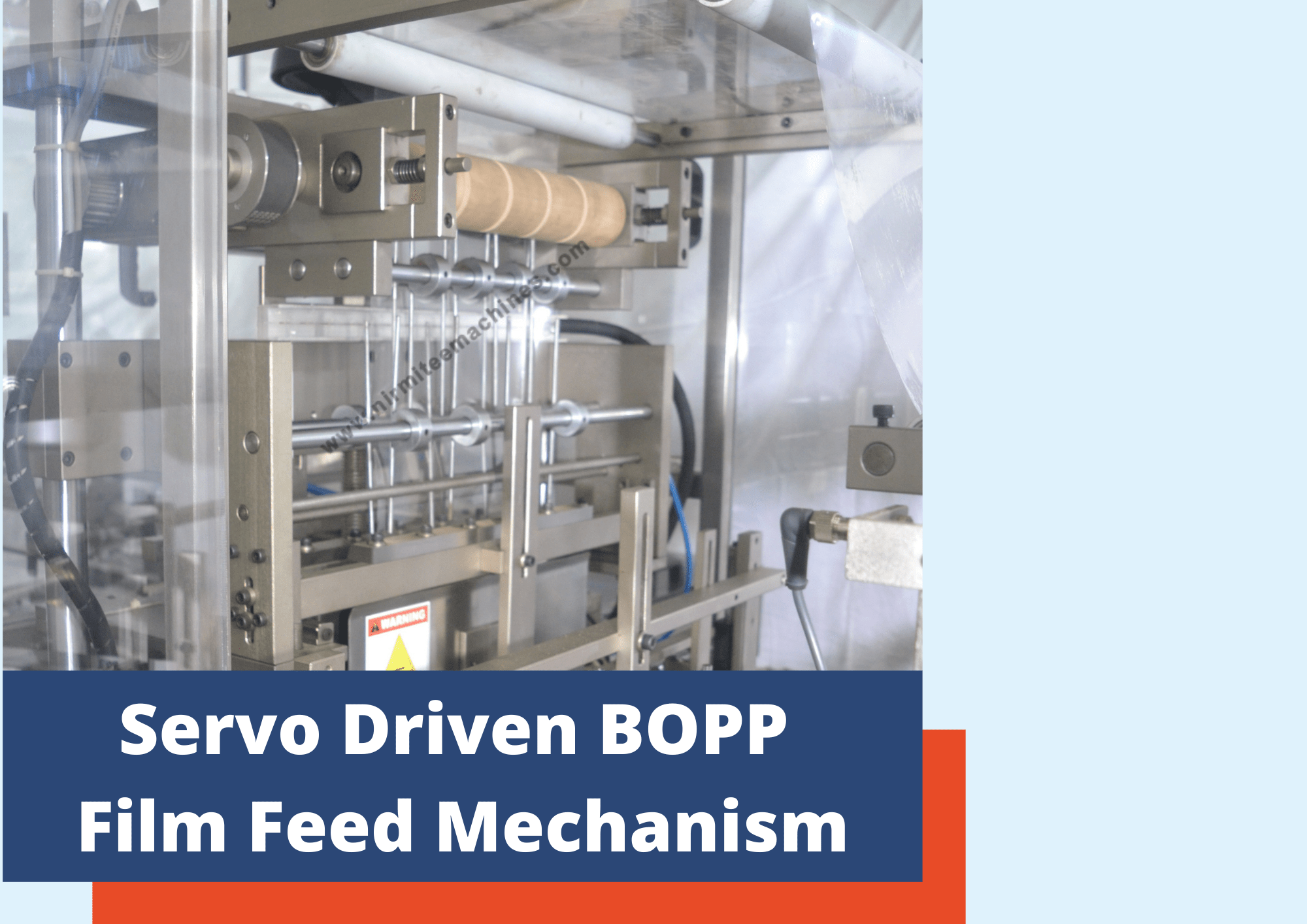

  • Paper draw with servo mechanism

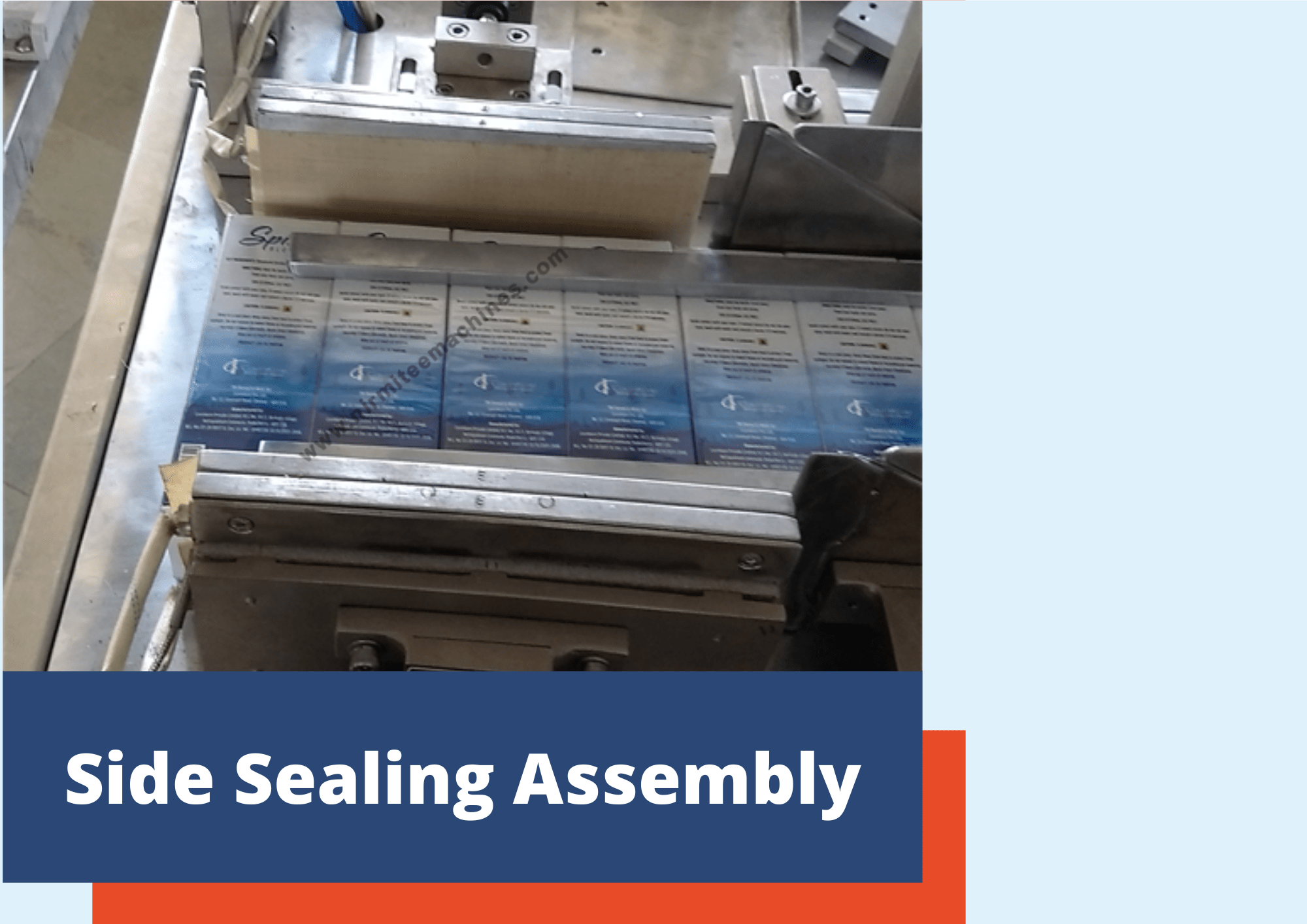

  • Digital temperature controller for BOPP sealing

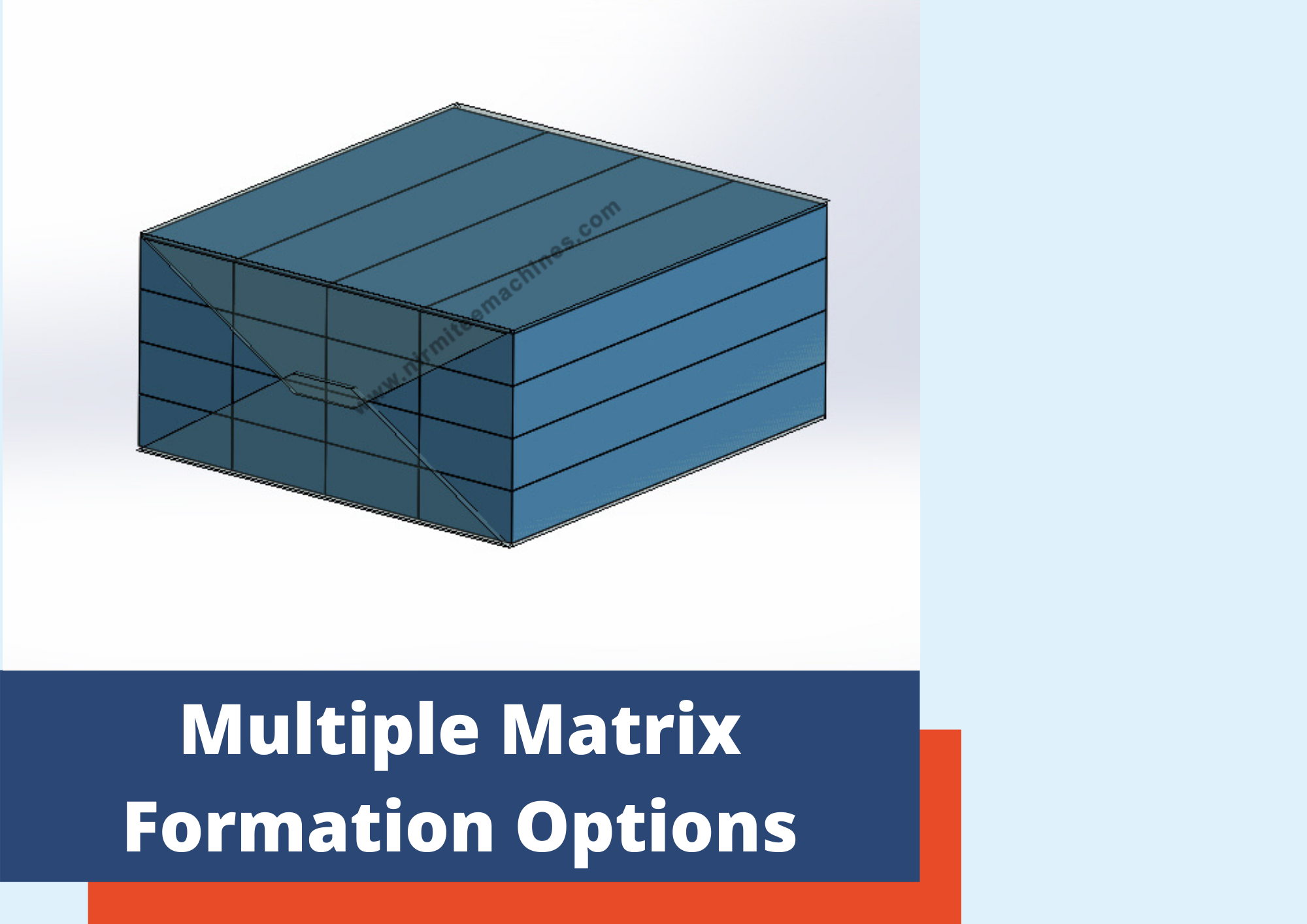

  • Adjustable matrix formations
  • Touch screen (PLC) control panel
