Cartoning Machine
Horizontal Continuous
Horizontal Continuous Cartoning Machine are high speed machines, with entirely automated functions. Multiple arm vacuum pickup ensures continuous & smooth operation with minimal human interaction. This machine has adaptability to upstream machine synchronization or even manual product feeding
|
Model |
NCC 80/ NCC 120/ NCC 200 |
|
Speed* |
80/120/200 cartons/min |
|
Carton Size |
110 x 30 x 12 mm (min)
|
|

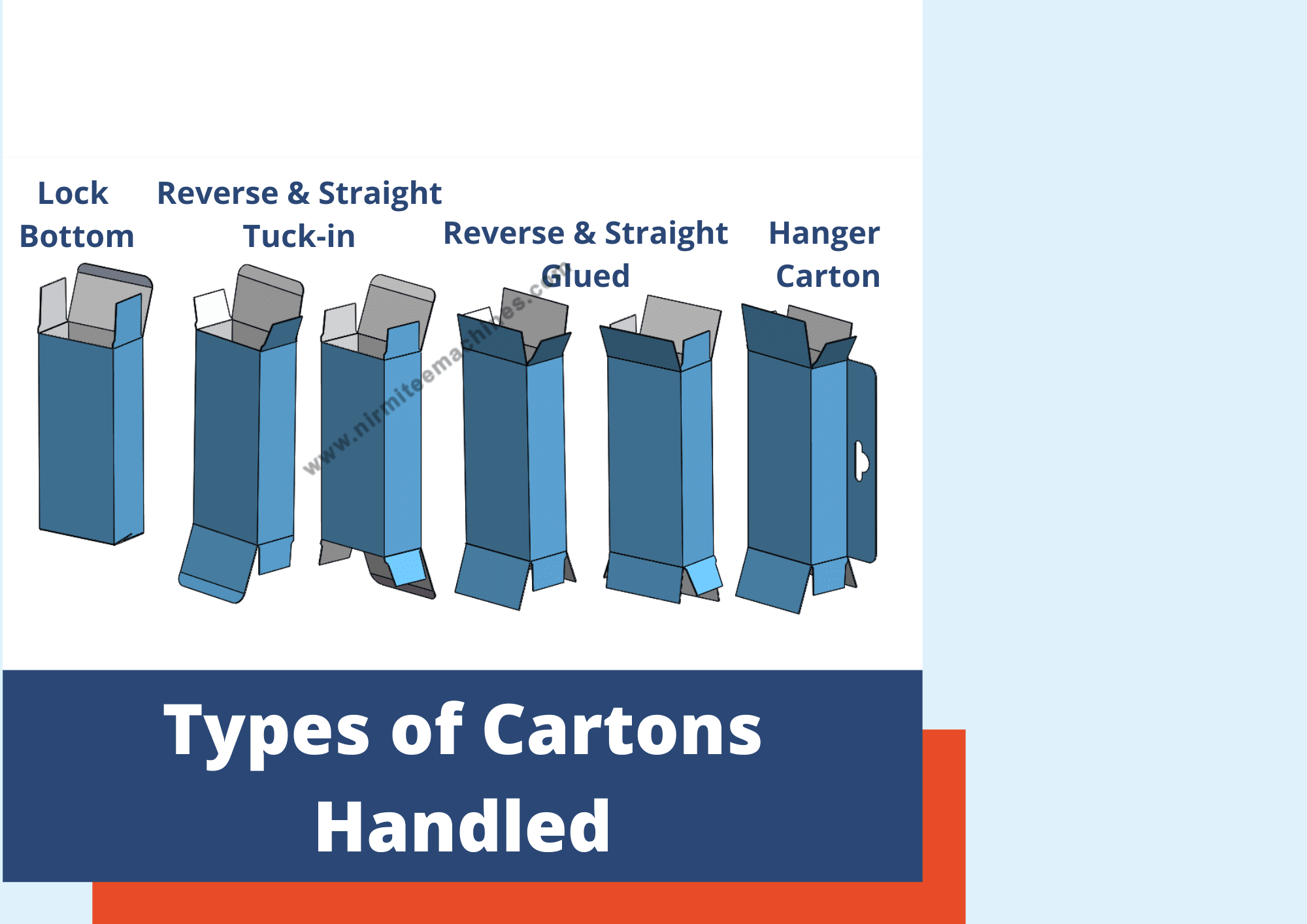

Carton Type |
Glued Carton/ Tuck in Carton |
|
Power Consumption |
5 kW |
|
Machine Dimensions** |
4000 x 1400 x 1600 mm (NCC 80/ NCC 120)
|
*Depends on cartoning material, volume and carton size.
** Machine dimensions may vary depending on the product size
- Vacuum carton pick-up system
- Positive carton opening system

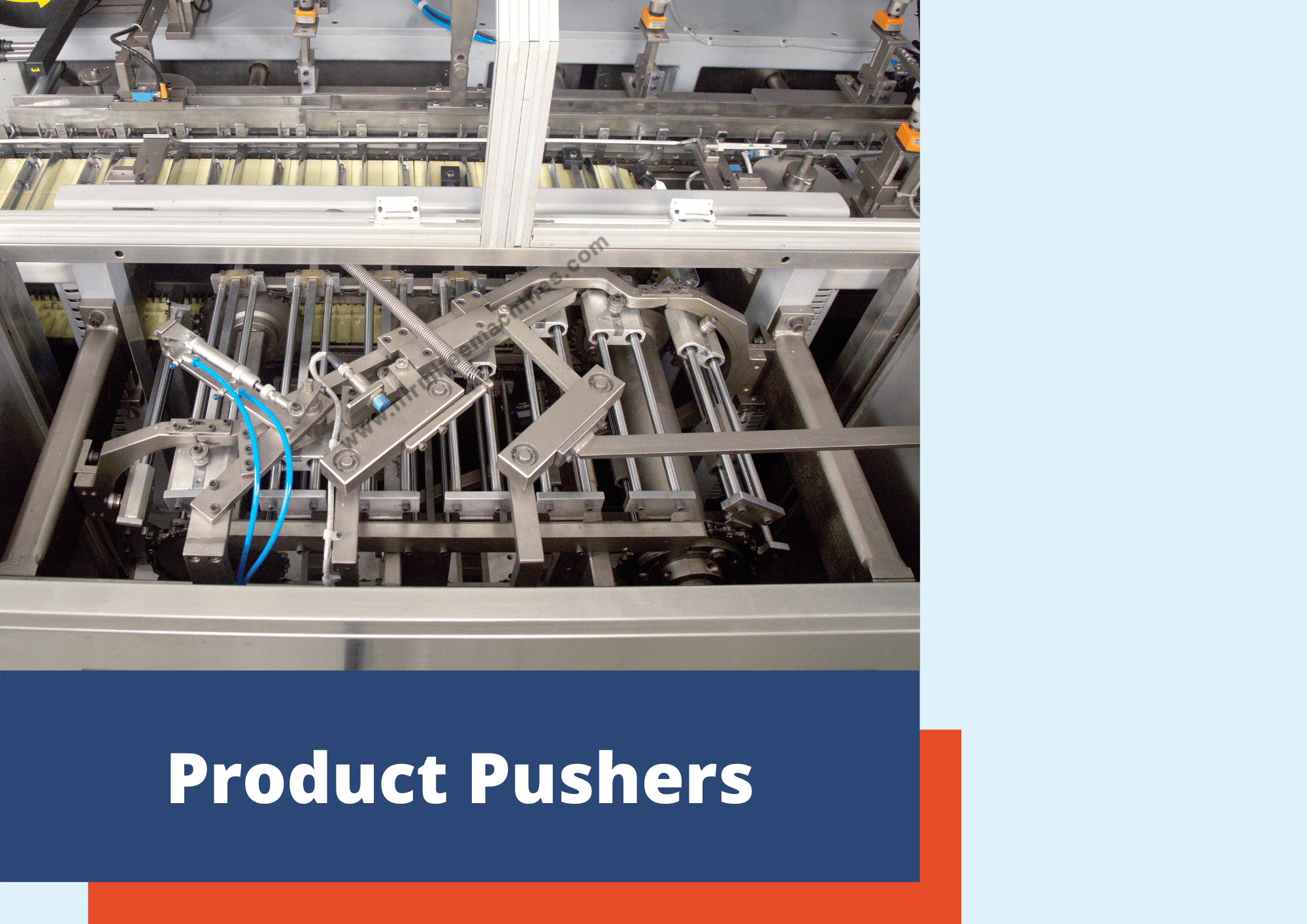

- Smooth product loading
- No product/No Leaflet No Carton mechanism
- Touch screen (PLC) control panel

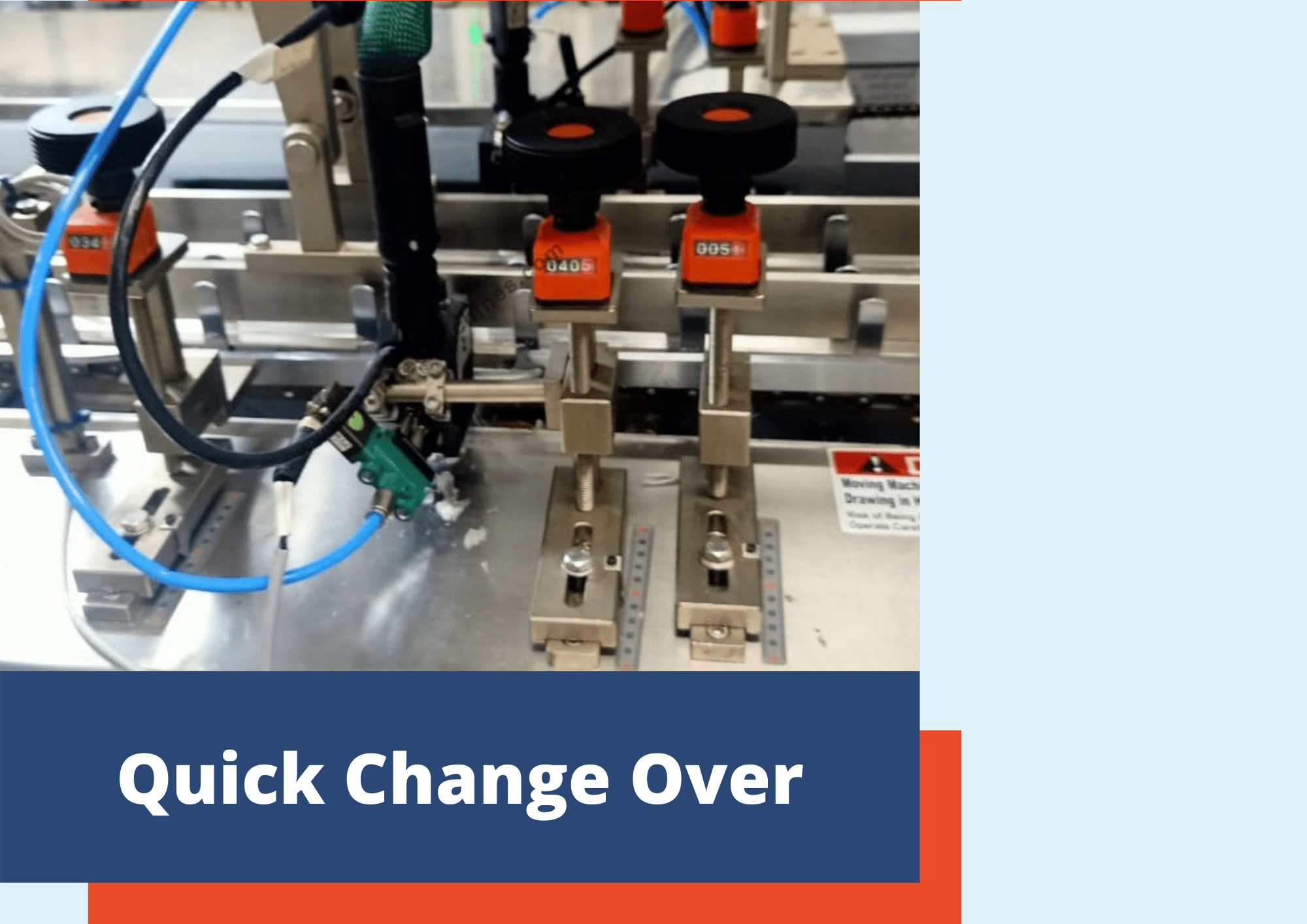

- Quick changeover for different product/ carton sizes
- SS304 Bottom Guards
- Integration with upstream/ downstream machines
- Synchronized drive to link up filling machine
- Bottle/ Pouch/ Tube/ Pencils/ Chalks
- Online coding

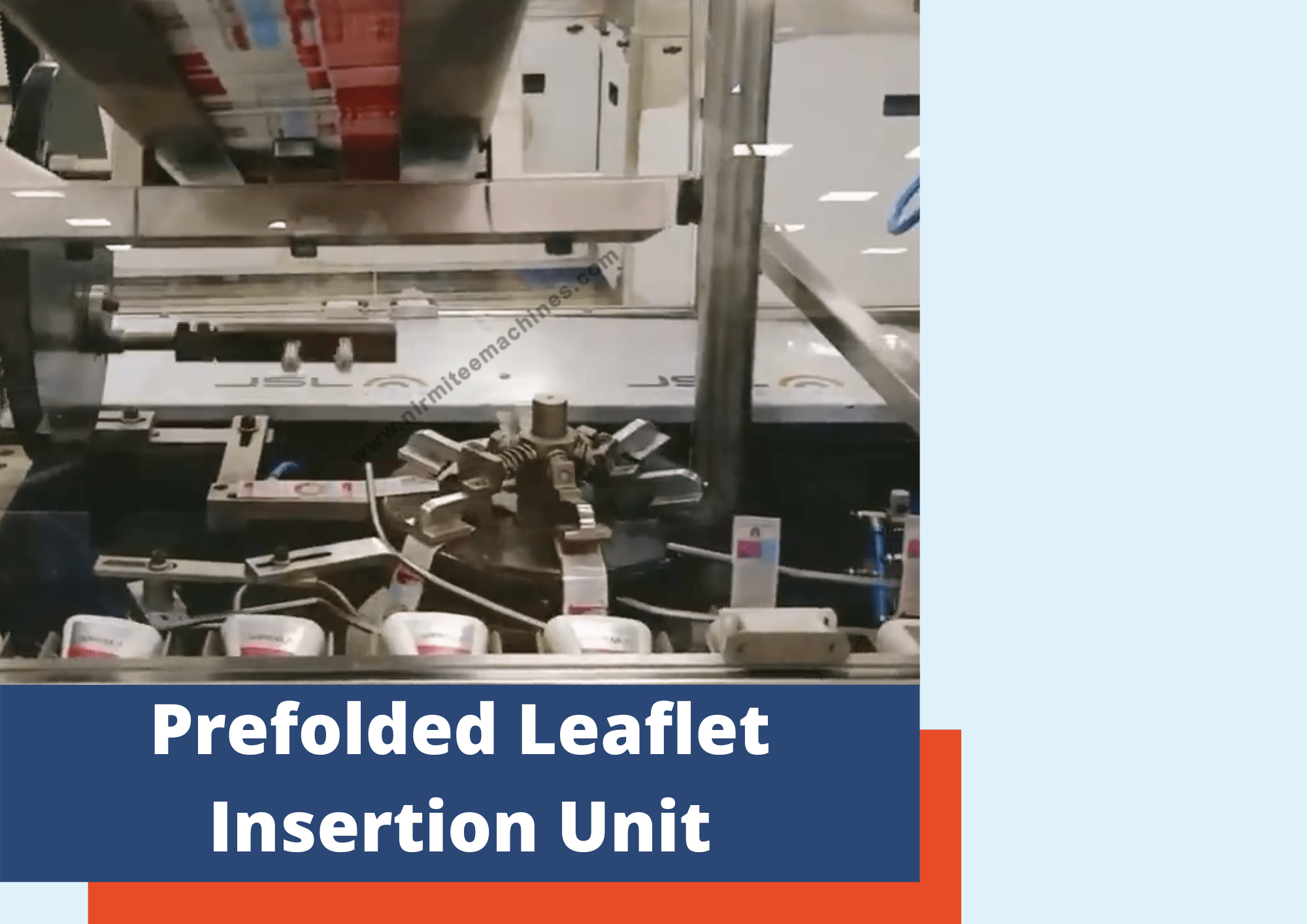

- Prefolded Leaflet insertion
- Hot Melt Gluing Unit
- Polycarbonate Guards for Personnel Safety
