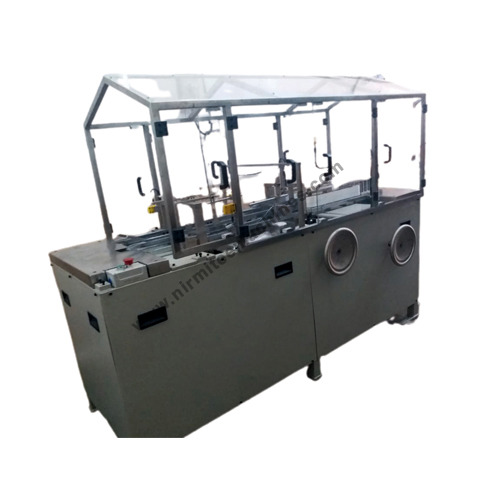

Carton Gluing Machine

Carton Gluing Machine is a cost-efficient solution for packing of variety of products. This semi-automatic machine is robust, compact, reliable combined with application flexibility and high end product quality. This machine has very quick changeover and is suitable for very small batch size.




25-30 cartons/min

Carton Size
(L x W x H): NCG 30

80 x 50 x 20 mm (min.)
280 x 300 x 100 mm (max.)

Carton Size
(L x W x H): NCG-J

80 x 50 x 70 mm (min.)
280 x 300 x 200 mm (max.)

Carton Type

Glued Carton

Power Consumption

4 kw

Machine Dimensions**

2100 x 1150 x 1200  mm (NCG 30)
3400 x 1200 x 1600 mm (NCG-J)

*Depends on cartoning material, volume and carton size.
** Machine dimensions may vary depending on the product size

  • Operator Ergonomics

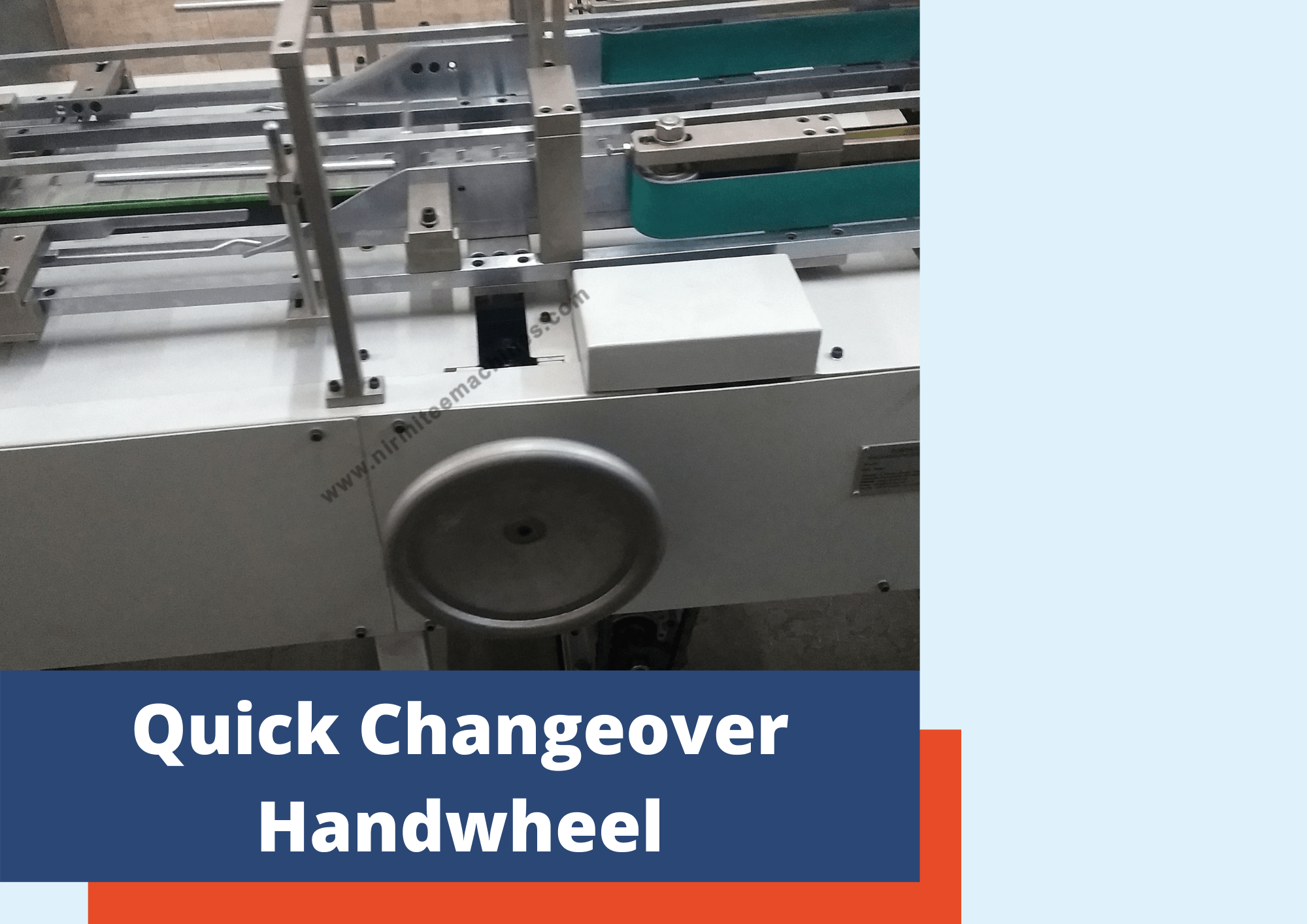

  • Quick changeover for different sizes

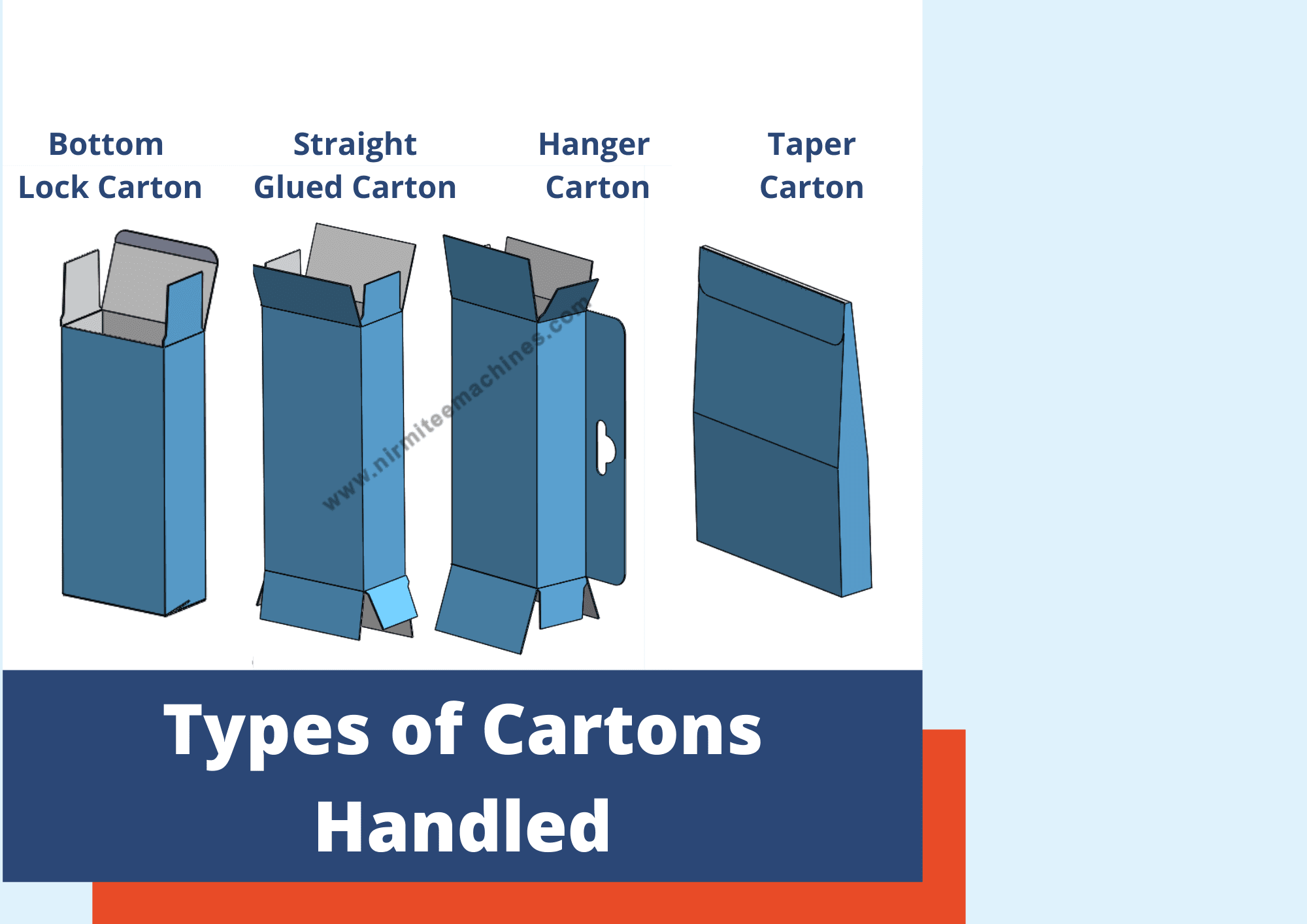

  • Efficient gluing of Rectangular & Taper carton on single machine.
  • Polycarbonate Guards for Personnel Safety
  • Hot Melt Gluing Unit
