Tube Filling Machine
Double Nozzle Linear
Double Nozzle Tube Filling Machine can be used efficiently for higher output requirements. Automatic/ Semi-Automatic models available to pack Laminated tubes, Plastic Tubes, Aluminum Tubes and Combo model to pack both Laminated / Plastic tubes & Aluminum Tubes.
|
Model |
NLL 120 (Laminated/ Plastic Tubes)
|
|
Speed |
120 tubes/min |
|
Tube Diameter |
12.5mm to 50mm |
|
Tube Length |
70mm to 200mm |
|
Filling Capacity |
5ml to 235ml |
|
Power Consumption |
8kw |
|
Machine Dimensions |
2700 x 1500 x 1500 mm
|

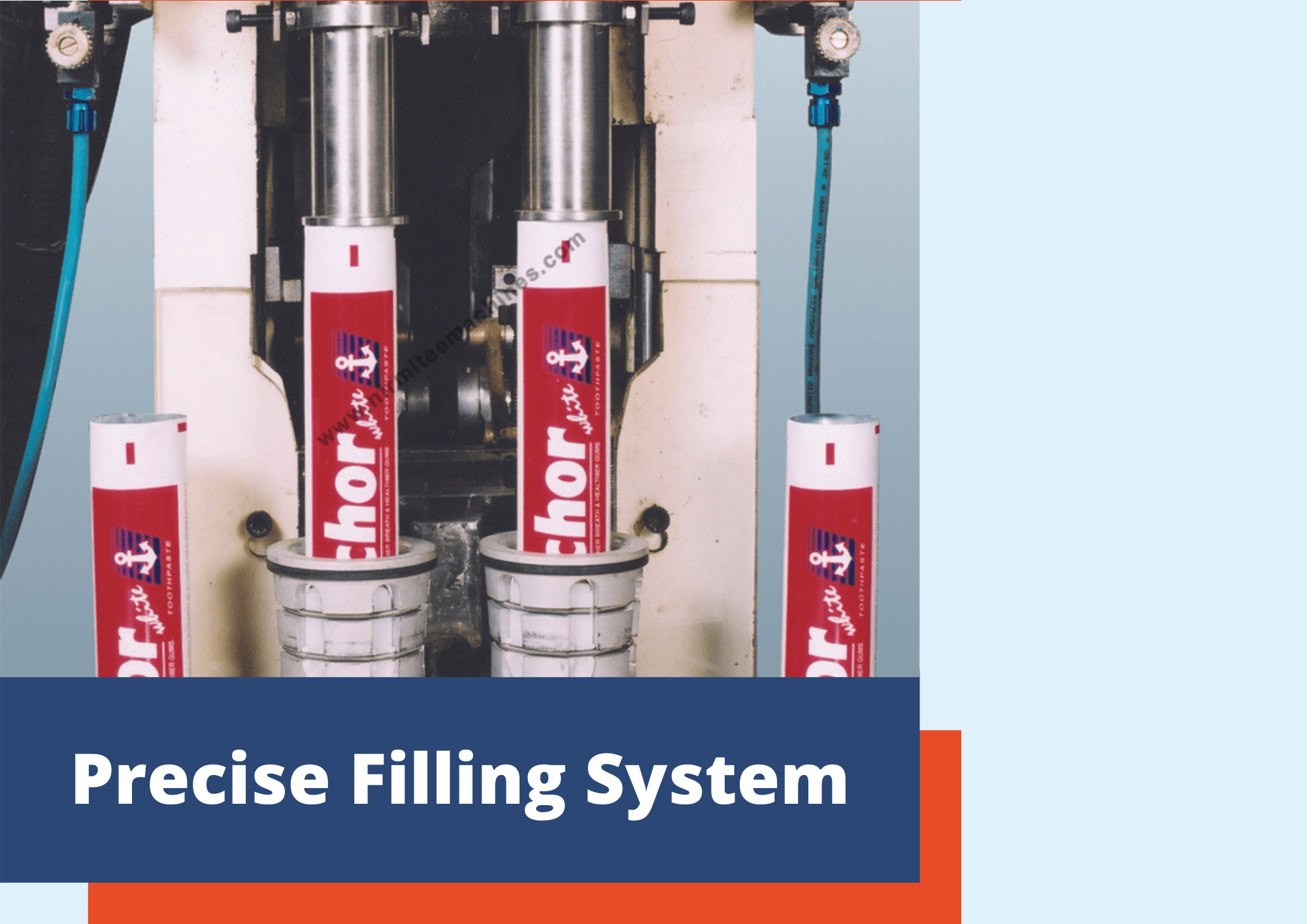

- Precise & uniform filling volume at each pump setting
- No tube no fill mechanism
- Zero drip with tail cutting arrangement
- Filling mechanism easily adjustable to different volumes

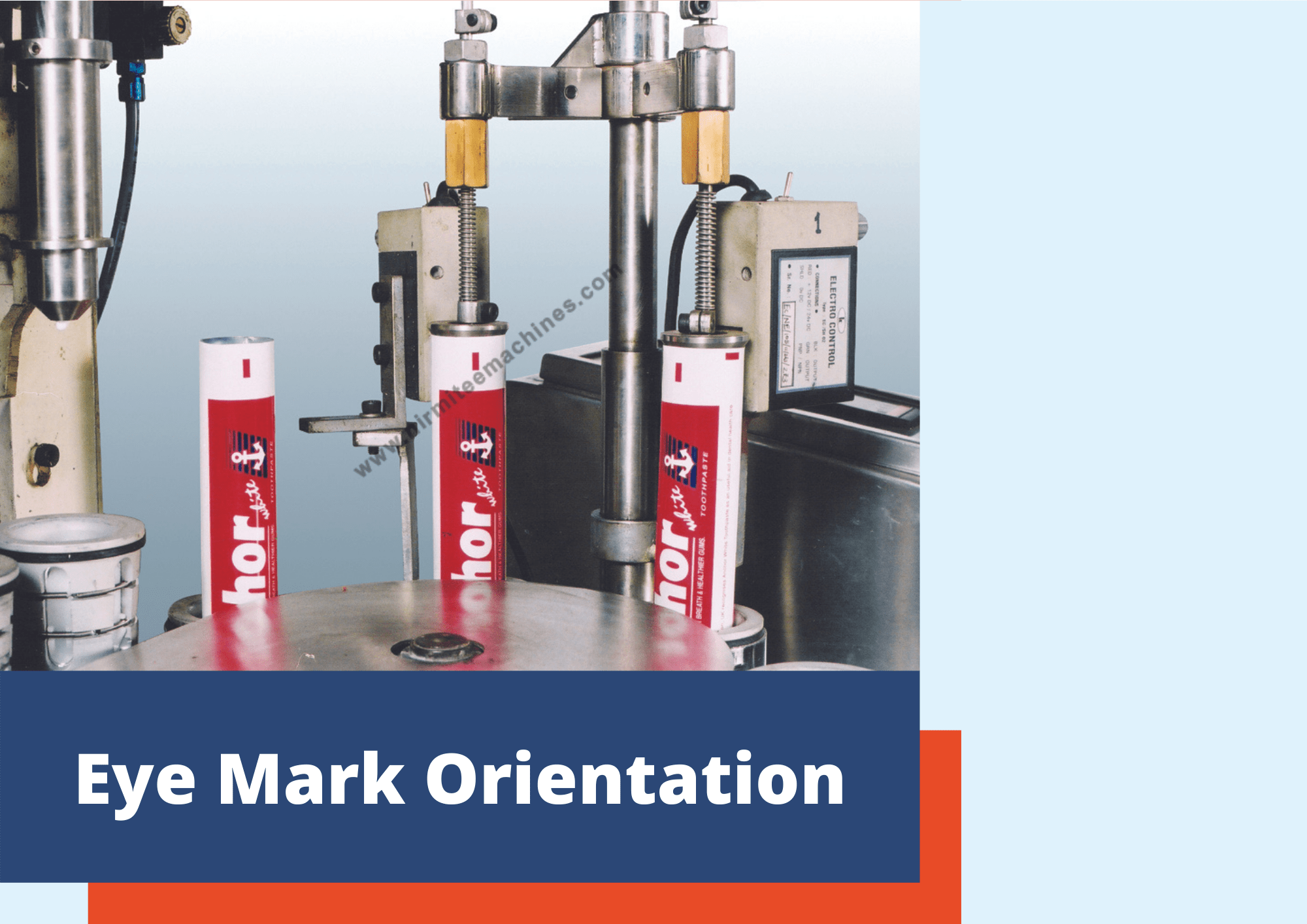

- Accurate registration (eye mark orientation)
- Touch screen display
- Quick changeover for different tube size
- High-quality stainless-steel grade SS316 for elements in contact with product

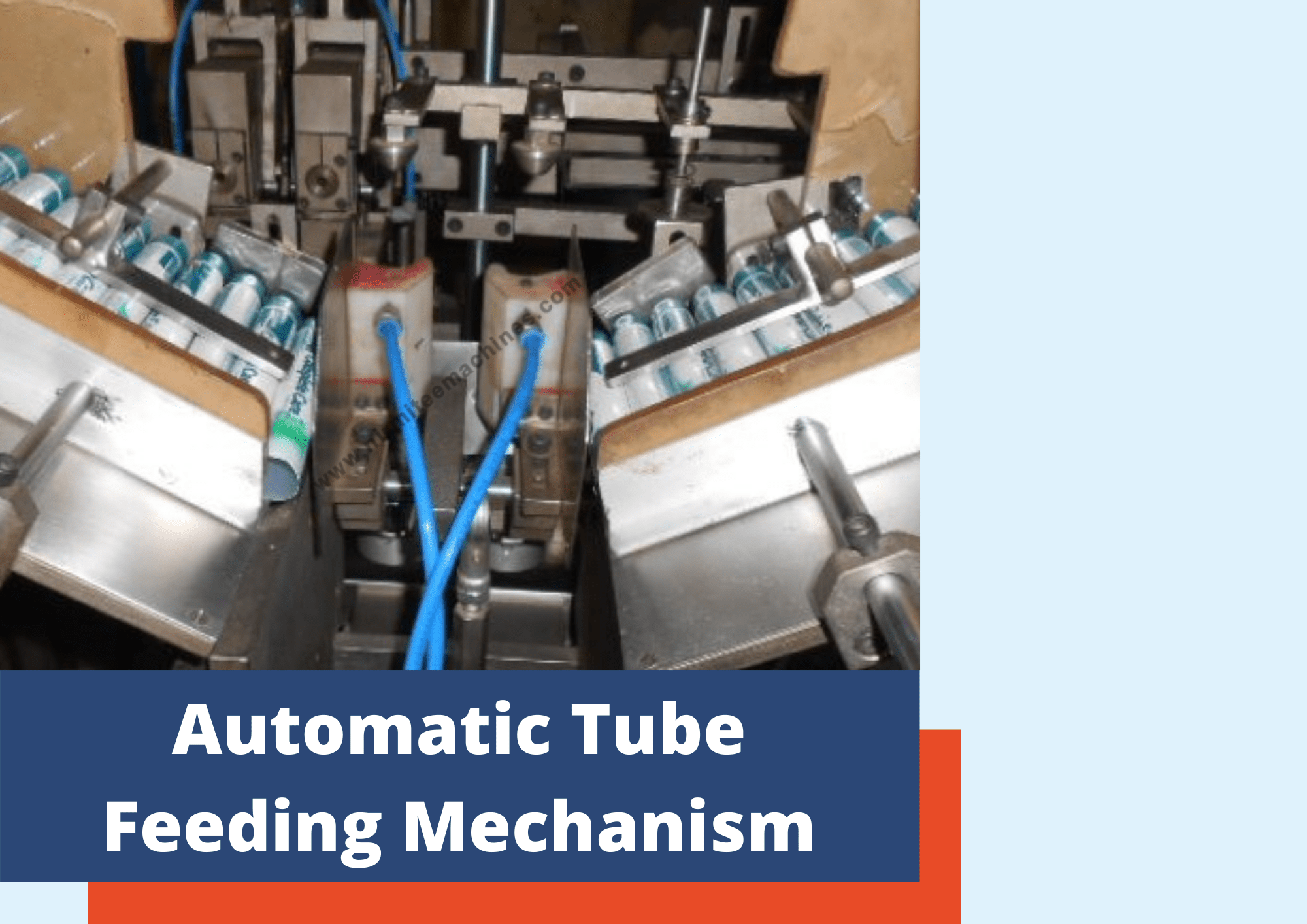

- Cassette Infeed
- Jacketed Hopper with Stirrer
- Tube Cleaning Unit
- Cap Tightening
- Tube Transfer Device
- See-through Polycarbonate Guards
